SMT4.0
The B2 machine for demanding production
The main reasons for choosing a TAULER SMT4.0:
- Because it incorporates the TAULER_OIL system that improves lamination and reduces energy consumption.
- Because it incorporates quick coil adjustment while the machine is running.
- Because it incorporates the TAULER_SHAFT SYSTEM that facilitates the quick change of film.
- Because you can stamp toner prints with the TAULER_FOIL system.
- For its intuitive touch screen.
- Because it incorporates a REVERSE MODE to correct possible errors.
- Because it incorporates TAULER_GO ON, an automatic starting system.
Technical specifications:
- Automatic feeding with frontal suction and two suckers.
- Adjustable side bracket.
- Temperature control by sensor.
- Pneumatic pressure roller.
- Easily adjustable decurling system.
- Photocell that stops the machine in case of sheet failure.
- Total control of the machine through a PLC.
- Electronically adjustable speed.
- Microperforation cutting system and scissor roller.

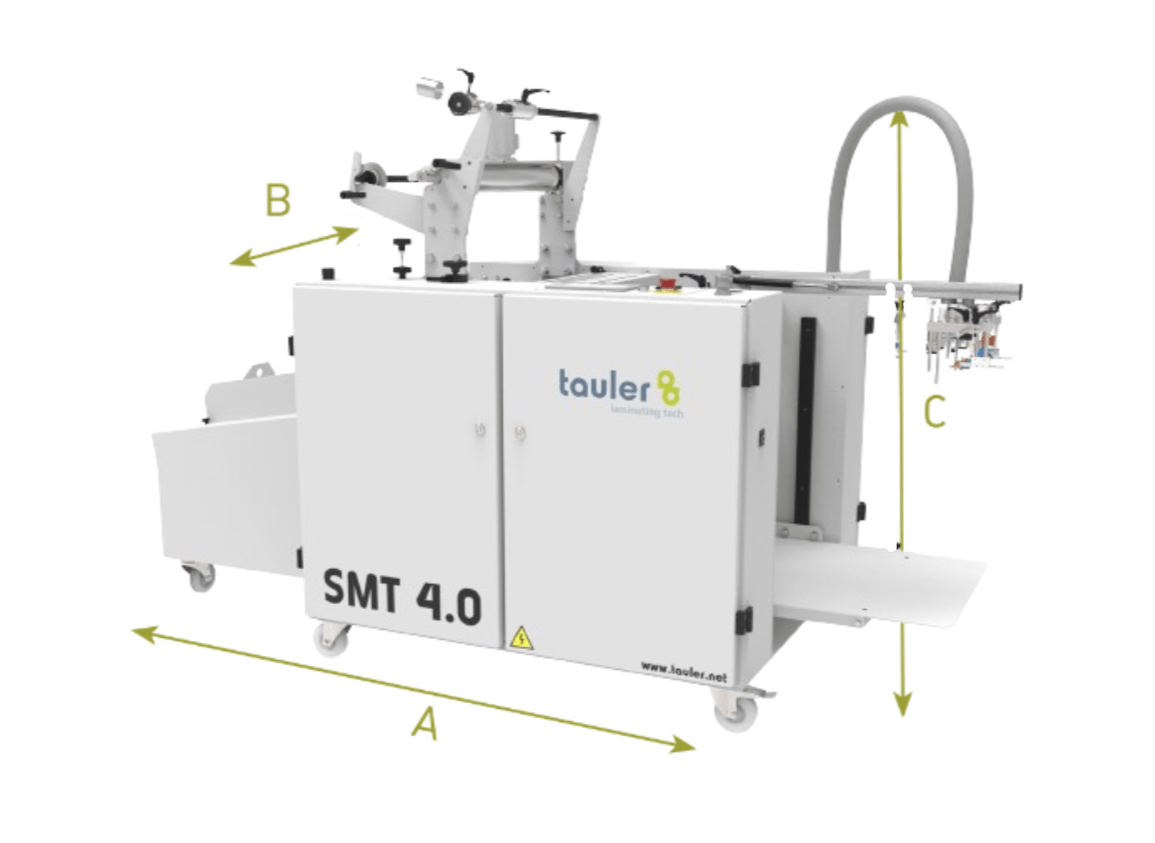

Longitud [A]: 250 cm
Width [B]: 120 cm
Height [C]: 155 cm
Weight: 1000 Kg
Fill out the following form and get our catalogue.
"*" indicates required fields
STAKER
Rolling mill assembly: (3515 x 1545 x 1403 mm)
XL TABLE EXTENSION
(55 x 105cm)
FOIL KIT
AUTOMATIC DISPATCH TABLE
Technical data
| Maximum format | 550 x 790 mm |
| Minimum format | 300 x 250 mm |
| Maximum mechanical speed | 2 – 25 m/min* |
| Paper thickness | 130 a 400 g/m2 |
| input/Output stack height | 600 mm |
| Film thickness | 20 to 42 μm |
| Electrical power installed | 8 kW |
| Power supply | 400 V three-phase 50 Hz |
| Security | CE-compliant protections, emergency stops, and safety sensors. |
*According to film, external conditions, paper type, thickness, and formats.
TAULER reserves the right to modify the characteristics of this product without prior notice. The image shown and the information reflected in this web & brochure does not establish contractual information. TAULER AND PRINTLAM ARE REGISTRED TRADEMARKS OF TAULER LAMINATING TECH, SL
