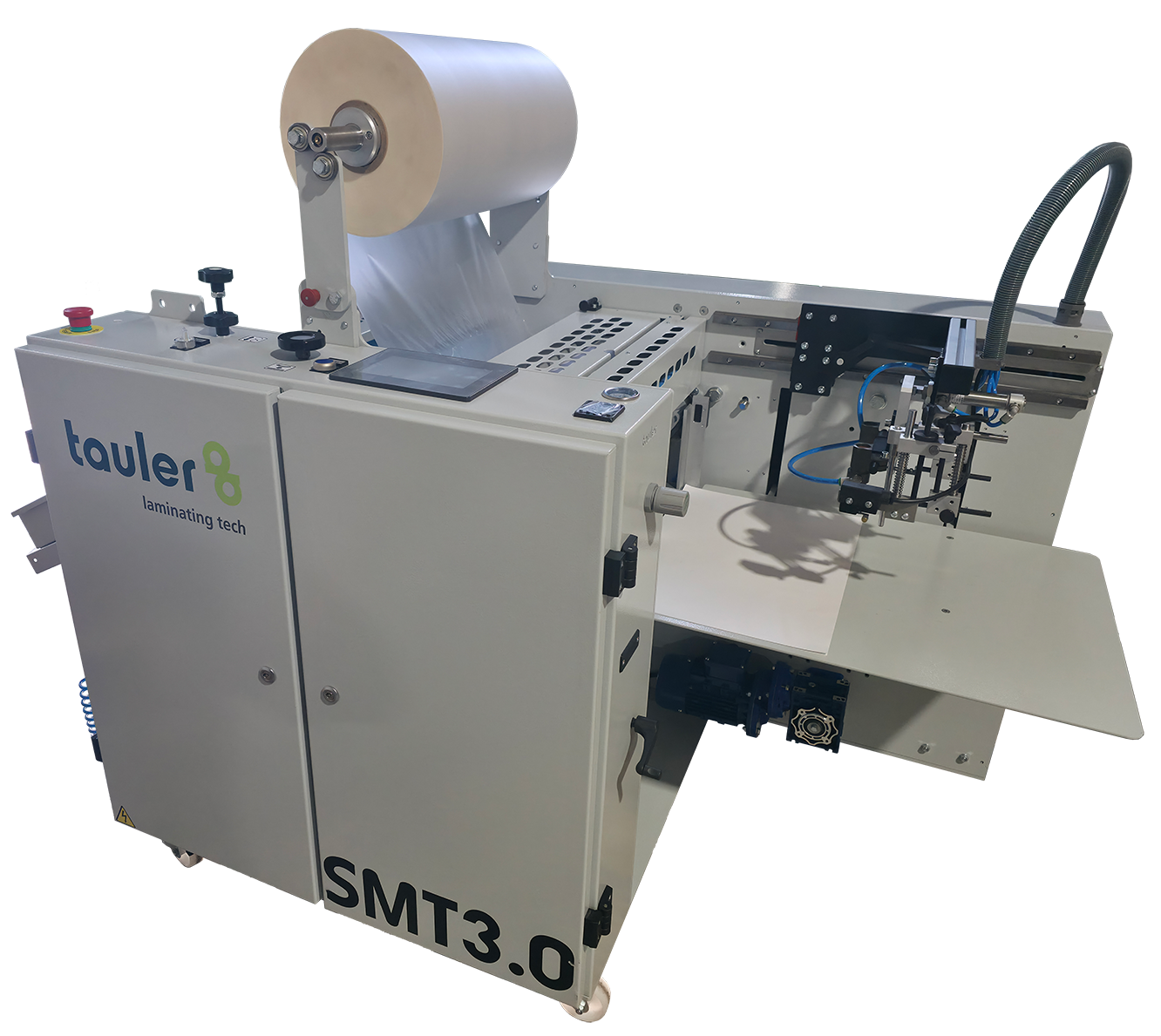

SMT 3.0

The most user-friendly small automatic laminating machine

The main reasons for choosing an SMT 3.0:

Because it is the MOST FRIENDLY laminating machine manufactured in the EU.
· Because it has a simple and easy to use automatic feeder.
· Because its ZERO WASTE system allows you to start and stop without losing a single sheet.
· Because it incorporates a silent compressor.
· Because you can print toner prints with your TAULER_FOIL system.
· For its intuitive touch screen.
· Because it incorporates a REVERSE MODE to correct possible errors.
· Because it incorporates non-stick rollers for ease of use.
· Because it has an automatic start-up system TAULER_GO ON.

Advanced specifications:

  • Fully automatic sheet feed and cutting system.
  • Adjustable side bracket.
  • Temperature control by sensor.
  • Pneumatically operated anti-stick pressure roller.
  • Easily adjustable anti-curling system.
  • Smart Photocell that stops the machine in case of sheet failure.
  • Optional pneumatic shaft.
  • Total control of the machine through a PLC.
  • Electronically adjustable speed.
  • Microperforation cutting system and scissor roller.
Smart B3 Matic laminators

Maximum length [A]: 215 cm

Maximum width [B]: 102 cm

Maximum height [C]: 143 cm

Weight: 650 kg

Technical details

Maximum format 500×700 mm
Minimum format 210×250 mm
Maximum mechanical speed 2 – 15 m/min*
Paper thickness 130 a 400 g/m2
input/Output stack height 28 cm
Film thickness 20 to 42 μm
Electrical power installed 4 kW
Power supply 230 V single phase 50 Hz
Security CE-compliant protections, emergency stops, and safety sensors.
*According to film, external conditions, paper type, thickness, and formats.
TAULER reserves the right to modify the characteristics of this product without prior notice. The image shown and the information reflected in this web & brochure does not establish contractual information. TAULER AND PRINTLAM ARE REGISTRED TRADEMARKS OF TAULER LAMINATING TECH, SL
