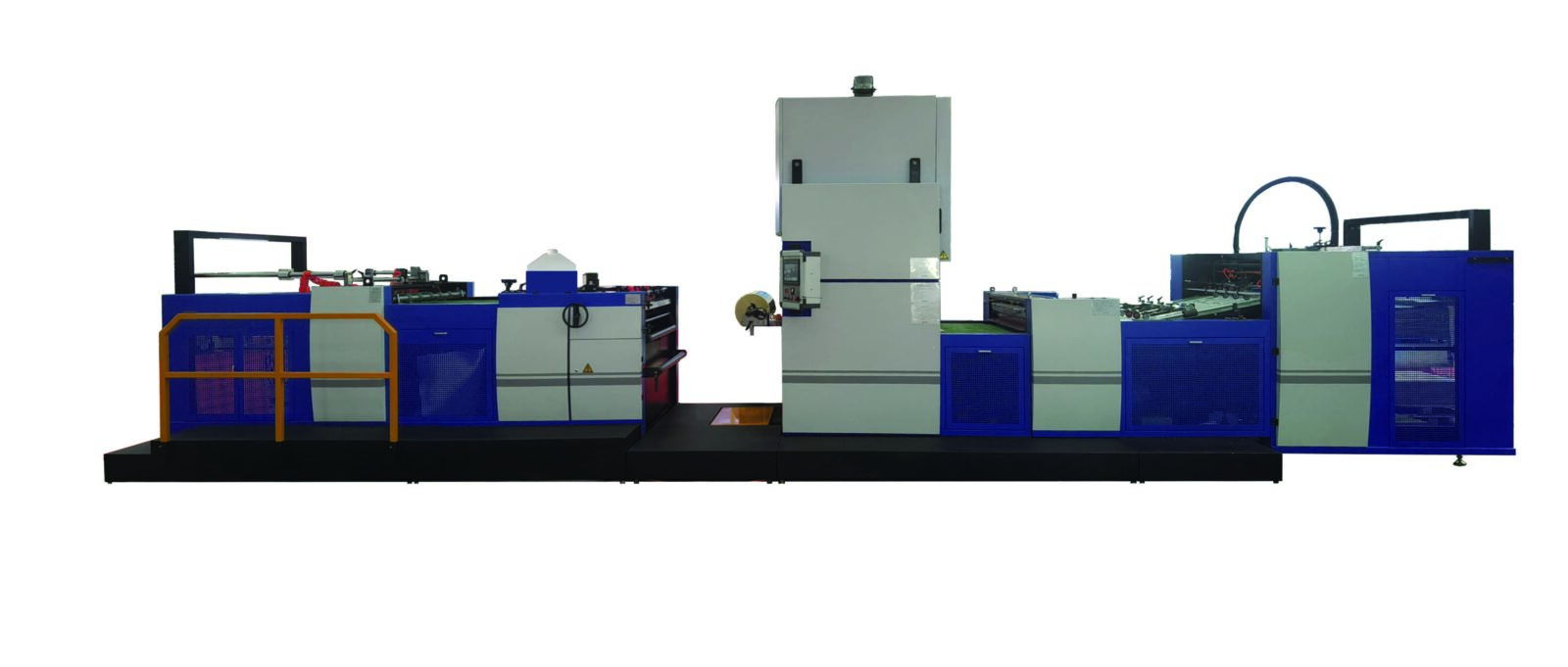

KFM1080/1300/1450
Automatic hot knife film laminating machine
Technical data
| Model | KFM1080 SCR | KFM1080 MCR | KFM1080LCR | KFM1300LCR | KFM1300XLCR | KFM1300XXLCR | KFM1450XLCR | KFM1450XXLCR | KFM1450XXXLCR |
| Maximum format | 1080 x 880 mm | 1080 x 1200 mm | 1080 x1450 mm | 1280 x 1450 mm | 1280 x 1650 mm | 1280 x 1850 mm | 1430 x1650 mm | 1430 x 1850 mm | 1430 x 2050 mm |
| Minimum format | 320 x 260 mm | 320 x 260 mm | 320 x 350 mm | 320 x 350 mm | 320 x 400 mm | 400 x 450 mm | 400 x 400 mm | 400 x 450 mm | 400 x 540 mm |
| Maximum mechanical speed | 100 m/min* | 100 m/min* | 100 m/min* | 100 m/min* | 100 m/min* | 100 m/min* | 100 m/min* | 100 m/min* | 100 m/min* |
| Paper thickness | 80-500 g/m2 | 80-500 g/m2 | 80-500 g/m2 | 80-500 g/m2 | 80-500 g/m2 | 80-500 g/m2 | 80-500 g/m2 | 80-500 g/m2 | 80-500 g/m2 |
| Stack height | 1300 mm | 1300 mm | 1300 mm | 1300 mm | 1300 mm | 1300 mm | 1500 mm | 1500 mm | 1500 mm |
| Installed electrical power | 81 kW | 82 kW | 84 kW | 95kW | 95kW | 95kW | 95kW | 95kW | 95kW |
| Weight | 11.200 kg | 11.400 kg | 12.000 kg | 14.200 kg | 14.400 kg | 14800 kg | 15.200 kg | 15.600 kg | 16.000 kg |
| Size | 11,1 x 2,9 x 3,3 m | 11,67 x 2,9 x 3,3 m | 13.5 x 2,9 x 3,3 m | 13,86 x 3,1 x 3,5 m | 14,25 x 3,1 x 3,5 m | 15,37 x 3,1 x 3,5 m | 14,7 x 3,3 x 3,5 m | 15,1 x 3,3 x 3,5 m | 16,1 x 3,3 x 3,5 m |
*Depending on the film, external conditions, paper type, thickness and formats.
TAULER reserves the right to modify the characteristics of this product without prior notice. The image shown and the information reflected in this website & brochure does not establish contractual information. TAULER AND PRINTLAM ARE TRADEMARKS OF TAULER LAMINATING TECH, S.L.
